Find out how to Construct a Drone | A DIY Information

I do know what you’re pondering. That’s an entire lot of phrases and I’m not even certain this web page is what I’m in search of. Let me summarize:

If you wish to discover ways to construct your personal drone, you might be in the best place. There are a lot of sorts of folks that could be on this new drone world. Nonetheless, this information is devoted for the nerds (and I imply that as a praise).

If you’re one among these hobbyists (euphemism for nerd), enable me to be your information in your journey of constructing a diy drone. Consider me like a Gandalf, and your self as a Frodo. That is all too apt an analogy, as your new drone pastime may flip into an habit very similar to a hoop that you simply by no means wish to take off. So be warned. I digress.

Make a drone build

This information is predicated off my course on how to make your own drone. If you happen to’re eager about studying extra about this topic, the course options 6 hours of video lectures in a structured curriculum.

It’s the excellent course of school college students and drone entrepreneurs, or anybody with a DIY perspective who’s eager about flying robotic issues. College students have used this course as a launch pad to create their very own drone functions, so I extremely suggest checking it out if you’re making an attempt to develop a brand new drone innovation.

However I digress 🙂

After ending this step-by-step information, you should have discovered:

  1. The entire elements required to fly a drone
  2. Find out how to discover your personal elements to make your personal drone. So no pre-assembled drone package required
  3. Find out how to assemble the elements that you’ve chosen

As quantity 2 exhibits, this information will arm you with the information to search out your personal elements as a substitute of simply soldering collectively electronics from a pre-assembled listing of elements that is available in a drone package. Because the saying goes “Give a girl a fish, she’s going to eat for a day. However train a girl to fish, and she’s going to eat for a lifetime”, or one thing like that.

It’s possible you’ll have already got a specific sort of drone you wish to construct in thoughts, like a small FPV quad or a bigger octocopter to carry a payload. The attractive factor concerning the drone pastime is that the anatomy of a drone is nearly the identical for any sort of drone you wish to construct.

With this in thoughts, this information is deliberately generically written, so it may be used as a reference for any sort of drone.

If you happen to’d wish to construct the drone featured on this information, checkout this raspberry pi drone elements listing.

Now let’s get into some diy drone engineering!

Primary Instruments Wanted to Construct a Drone

  1. Soldering Iron and solder (Required): You’ll need a soldering iron for assembling a few of your drone elements.
  2. Serving to Fingers (Optionally available): Serving to palms hold you sane whereas making an attempt to solder. They mainly maintain the half desirous to be soldered in place.
  3. Multi-meter (Optionally available): A multimeter is simply typically a great software to have in your toolbox, and will enormously assist in diagnosing any electrical issues you might encounter together with your drone
  4. Double sided sticky tape (Required): That is virtually an important half for any drone construct, and I’m solely type of kidding. You’ll be fixing many elements to your body merely with double sided sticky tape.
  5. Velcro (Required): A strip of Velcro could be very useful for fixing your lipo battery to your body
  6. Zip Ties (Required): Some drone {hardware} is less complicated to repair to the body with easy zip ties, like ESCs (See under).
  7. Warmth shrink or electrical tape (Required): Your motors and ESCs will most likely be linked with bullet connectors (Extra foreshadowing, see under). If these metallic bullet connectors contact when you’re flying, the circuit will brief out and your drone will most likely crash right down to earth. Keep away from this terror by inserting an insulator round your metallic bullet connectors.
Tools for Drone Building

Primary Drone Components for a DIY Drone

Body

There are two principal issues to notice concerning the body of your drone. The primary being what number of arms there are. Every arm will usually have one motor, which may have one propeller. For that reason, drones with a number of motors are merely known as ‘multirotors’.

Drone Frame Quadcopter

Tricopter: A drone with three motors.

Quadcopter: A drone with 4 motors.

Hexacopter: A drone with six motors.

Octocopter: A drone with eight motors.

Quadcopters are by far the most well-liked, so we will probably be specializing in the way to make a quadcopter on this information.

The second factor to learn about frames is the scale. Body sizes listing the farthest distance that two motors are from one another. For quadcopters, this usually means measuring the gap between two diagonal motors in millimeters (sorry Individuals).

Drone Frame Size Quadcopter

Nano Drone: 80-100 mm

Micro Drone: 100-150 mm

Small Drone: 150-250 mm

Medium Drone: 250-400 mm

Massive Drone: 400+ mm

If you wish to make a drone from scratch, choosing the body measurement goes to be your first step.

Motors

There are two principal sorts of motors: brushed and brushless. Your cheaper able to fly drones will probably be utilizing brushed motors, and that’s as a result of they’re utilizing the cheaper motor. Whereas low cost, they put on down and break a lot sooner than brushless motors. Brushless motors final for much longer and are the popular motor of alternative for diy drone builds.

There are innumerable quantities of brushless motors on the market. That can assist you decide what motor will go greatest together with your construct, most producers offer you some details about the product. The 2 most typical specs are the scale and KV score.

Let’s take a look at a specific instance.

2213 935KV Brushless Motor
Brushless Motor: 2213 935KV

Right here the motor measurement is 2213. That’s actually representing two numbers and needs to be proven like this: 22-13.

The 22 is the width of the stator in mm, and the 13 is the peak of rotor in mm. Usually, the broader the width, the extra torque the motor have.

One other spec that comes with brushless motors is the KV-rating. On our instance motors, it’s 935KV. Don’t confuse KV with kilo-volts. Right here KV score means RPMs per one volt of enter.

So if we provided 1 volt to a 935 KV motor, it might spin at 935 RPMs. Two volts enter would trigger 1870 RPMs and so forth.

Decrease KV motors produce far more torque, so can spin bigger props at slower speeds to get carry. Bigger KV motors produce a lot decrease torque, however spin smaller props a lot sooner to get carry.

Usually bigger drones use low KV motors, and smaller drones use excessive KV motors.

The very last thing I’ll say right here is most producers will present you the specs of elements that needs to be used with the motor, which may show useful in choosing elements when you’ve chosen your motors.

Our instance motor comes with the next useful info.

Propellers (Props)

The following half on this make a drone information is the props. Propellers will at all times include a four-digit quantity like 8045, or 1045 or 6030.

The primary two digits communicates the diameter of the prop in inches (Yay Individuals!). So an 8045 prop will probably be 8 inches in diameter.

The final two digits signify the pitch, in inches. The 8045 instance has a 4.5-inch pitch, and the 6030 prop has a 3 inch pitch.

Pitch is rather less intuitive to grasp than diameter. Qualitatively, the upper the pitch the extra air will probably be pushed down. A prop with a pitch of 0 inches could be like spinning a butter knife.

To grasp what the pitch really means let’s use an analogy. Screws have pitch as properly. If you happen to flip a screw one rotation into a chunk of wooden, it is going to dig itself into the wooden at some fixed depth.

Let’s now think about that we positioned the pitch of our 8045 prop onto a screw, so the screw now has 4.5 in pitch. One rotation of the screw would trigger it to dig into wooden by 4.5 inches. We are able to now see that the upper the pitch of a prop, the extra substance (air) it is going to transfer.

Increased pitch props are usually used with low KV motors since they supply extra torque. They will spin slower since excessive pitch props are pushing quite a lot of air per unit of rotation. Decrease pitch props are used with excessive KV motors since they spin a lot sooner. Accordingly, they should spin sooner since they’re pushing much less air per rotation.

Digital Velocity Controllers (ESC)

If you’re utilizing a brushless motor, you will have an digital pace controller. Brushed motors don’t require an ESC as a result of they solely want a easy DC voltage enter.

Electron Speed Controller

Brushless motors however require an enter of three out of section voltages. Don’t fear, this sounds scarier than it’s. All it’s a must to do is provide the ESC with a DC enter voltage, and it’ll routinely generate three out of section voltages that connect with the motor, inflicting it to spin.

Your producer will inform you the vary of enter voltages your ESC can deal with, so control that.

Usually your ESC will include three outputs, and you’ll solder some male bullet connectors to the ends that can connect to the feminine bullet connectors of the motors.

Lithium Polymer Battery (Lipo battery)

Your battery powers all the things in your drone. Selecting the best battery is essential to creating a drone.

Nearly at all times the battery of alternative for drones is the Lipo battery. That is for its attributes of excessive capability and excessive output present.

A typical Lipo battery will include specs like this: 3000 mAh 4S 50C

Lipo Battery

Lipo Cell Depend

Let’s begin with the 4S half. A battery pack is a bundle of particular person little batteries, referred to as cells. A lipo cell at all times has a voltage of 4.2V when totally charged, and three.7V when depleted. So the 4S signifies that 4 of those Lipo cells had been positioned in collection. Since batteries linked in collection add voltages, we all know the totally charged voltage of the overall battery pack is:

(Cell rely)(Totally charged Voltage)=(4 cells)(4.2V)=16.8 Volts

Capability

Lipo Cell
Particular person Lipo Cell

Shifting onto the mAh spec. It is a measure of capability, and capability is often measured in Coulombs of cost. Consider capability like the quantity of a liquid container; it merely represents how a lot cost is within the battery.

SUPER NERD STUFF ALERT. SKIP TO C-RATING IF YOU DON’T CARE ABOUT UNITS!

However wait! mAh has no items of Coulombs in it! It really does, but it surely’s simply hidden. Let me clarify.

1 Amp = 1 Coulomb/second = 1 C/s

1 h = 1 hour = 3600 seconds

m = milli = 1/1000

So subbing in our variables into mAh:

3000 mAh = 3000(1/1000)(1 C/S)(3600 s) = 10800 Coulombs

So 3000 mAh is similar factor as saying 10800 Coulombs.

The following half is the C-rating

C-Score

The upper the C score, the upper the output of present could be for that battery.

To seek out out the utmost present output your battery can deal with, take the C score and multiply it by the capability of your battery in items of Ah.

The C score has items of inverse hours (1/hour)

3 Ah*50(1/h) = 150 A

So this hypothetical 50C battery might output 150A of present!

Now there may be some confusion on what the C score really means. Some producers’ C score merely means the utmost burst present you can output for 30 seconds, and others use the C score to point the utmost steady present output. Test together with your particular battery producer to find out which C score they’re utilizing!

Energy Distribution Board (PDB)

Power Distribution Board with Battery Connector
Energy Distribution Board with Battery Connector

The facility distribution board is the place your principal electrical elements will join. The principle issues you’ll solder to your PDB are your ESCs and battery connector.

Once you plug in your battery to the PDB, it gives energy to all the things connected, so that is the place your ESCs will probably be drawing their present from.

Flight Controller

A flight controller is mainly the brains of the drone. It’s basically a {hardware} hub that each one your drone elements will connect to. Issues just like the ESCs, GPS, Telemetry, RC Enter and plenty of different elements.

All flight controllers ought to come outfitted with a gyroscope and accelerometer (IMU), which collectively assist to routinely steadiness your drone with none guide enter.

Flight Controller Board Pixhawk
Flight Controller Board Pixhawk

All flight controllers are managed by the firmware. Relying on the flight controller, you might have entry to flash new firmware to the board. Firmware can both be closed supply (property of an organization that the general public can not see), or open supply (the general public can see the code and make modifications).

If you happen to’d wish to make a drone with open supply firmware like ArduPilot or PX4, ensure that the board you might be shopping for is supported.

GPS

GPS modules could be purchased for fairly low cost. Usually they use the UART or I2C protocol, and most of GPS modules meant for drone use come outfitted with a magnetometer as properly.

It is best to have your GPS/magnetometer module lifted up within the air to get away from the magnetic fields being produced by your drone’s electronics.

In case your GPS is just too near the electronics, it could possibly be inflicting incorrect readings producing some humorous flight.

You wish to construct a drone with a great GPS module. Search for one which has the M8N u-blox chip. These are a lot better than a number of the different GPS modules obtainable on Amazon, and value across the similar.

RC Controller

Radio Controller Transmitter
Radio Controller Transmitter

An RC controller will include a transmitter (the factor being held by the pilot) and a receiver (to obtain the instructions from the pilot).

The receiver will plug into your Flight Controller.

You might have some choices with the RC controller. Cheaper RC controllers have a decrease variety of channels. Nonetheless, the minimal variety of channels it is best to use might be 5 or 6 for a drone.

RC Receiver
RC Receiver

Each drone will take up 4 channels routinely with the Roll, Pitch, Yaw and Throttle management.

Your extra channels can be utilized for extra distinctive management, like altering the flight mode of your multirotor.

Telemetry

Telemetry can also be used to wirelessly talk with the drone. You positively wish to construct a drone with telemetry.

There will probably be one module connected to the drone, and one other to a pc (typically known as a floor management station GCS). That is sometimes plug and play.

The GCS can then talk with the drone remotely. It may well each ship and obtain info.

Telemetry Modules
Telemetry Modules

For instance, the GCS might observe the drone’s place on a map, decide how briskly the drone is shifting, see battery voltage ranges and plenty of different issues.

It may also be used to command the drone, which means you wouldn’t really need an RC controller to fly it.

Whereas that is one thing that’s potential and one thing that’s really executed, telemetry is generally used for receiving information again from the drone.

Find out how to Select the Proper Components?

Earlier than you begin to really put the elements collectively and construct a drone, we have to know the way to discover the best elements. The method of selecting the best drone elements is a combination of each artwork and science.

The first metric we will probably be is the Thrust to Weight ratio, from hereon known as the TW ratio.

TW Ratios

Everyone knows how to consider weight. It’s the power that we’re being pulled to the bottom with.

Drones even have weight, and might solely fly if they will produce an upward thrust that’s better than their weight.

So a TW ratio of two signifies that the drone can produce twice as a lot upward power than its weight.

It is best to purpose for various TW ratios relying on the applying of your drone. For that reason, having a goal TW ratio is step one within the means of designing your personal drone, as you’ll choose elements to attain that focus on.

If you’re desirous to fly an aggressive FPV drone, TW ratios of 4 and above are sometimes used, however I’ve seen as excessive as 11.

For drones designed to hold a payload, TW ratios round 2 are regular, however you can fly with as little as a TW ratio of 1.5.

In case your drone has a TW ratio of 1, properly, you gained’t get very far.

Estimating Thrust to Weight Ratio

To estimate TW ratio, that you must begin by estimating the load of your drone.

This implies going by the half listing above and including up the weights of the varied elements (like motors, ESCs, flight controller and so forth). It is best to begin with the body you’d wish to construct and choose elements from there.

Let’s say your estimate of weight for a drone you needed to construct was 1,000 grams. If you happen to had a goal TW of two, this implies you would wish thrust of two,000 grams. For a quadcopter, this could imply thrust of 500 grams on every motor.

Thrust to Weight
Thrust to Weight

Estimating thrust of a motor is a perform of battery voltage, prop measurement and motor alternative. Change one among these variables and you alter how a lot thrust you’ll generate.

I like to decide on motors from producers that present thrust tables. Thrust tables have empirical information that present you what number of grams of thrust you’ll have for various variables.

An instance of a thrust desk could be seen under for the eMax 2213kV motors.

For simplicity, let’s say the utmost thrust of this motor was really the very best thrust quantity proven on this desk. We’d have a most of 670 grams of thrust if utilizing a 1045 prop/11V battery, or 490 grams if utilizing 8045 prop/11V battery.

So if we used 8045 props, we might produce 1960 grams of thrust (490g 4 motors) at 11V. If utilizing 1045 props, we might produce 2680 grams of thrust (670g 4 motors) at 11V.

With a TW of two, having 1960 grams of thrust with 1000 grams of weight would put us fairly near our objective.

If you happen to’d wish to see a extra in depth take a look at the way to choose elements for a drone construct, my course on the way to construct drones covers this intimately!

Construct a Drone With Your Chosen Components

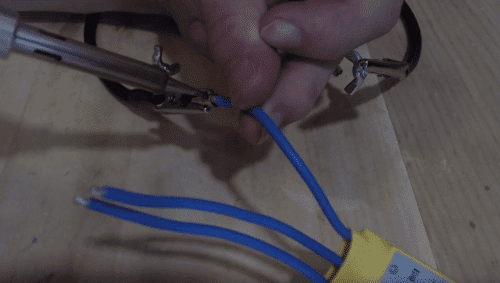

  1. Solder bullet connectors to your motors and ESCs

    DIY drone solder bullet connectors

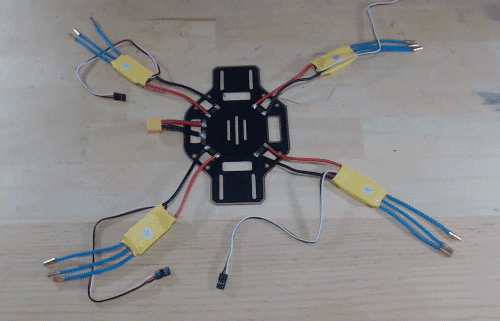

  2. Solder the ESCs and battery connector to PDBmake a drone solder escs
  3. Repair your PDB someplace in the course of the drone. That is sometimes within the center or backside of the body. Securing the PDB could be executed with zip ties
  4. Repair your ESCs to your drone’s arms: one on each arm. The ESCs could be both on the highest or backside of the arm.Attaching ESCs to arms of diy drone
  5. Screw the motors to the tip of every arm. The motors ought to include mounting screws. Be certain to not over-tighten. You should have two CW and two CCW motors, make certain they’re positioned on the proper arms in accordance with this diagram.
Proper Motor Spin Direction
Correct Motor Spin Route
  • Join the bullet connectors from the ESCs to the motors
  • Take a look at motors and see if motors are spinning in the best path. In the event that they aren’t, merely change two of the bullet connections.
  • Utilizing double sided sticky tape, safe the RC Enter module to your drone, someplace in the direction of the center of the body
  • Safe the Flight Controller to the drone someplace close to the center. It’s usually mounted to the very high of the body or within the center. This may be executed with double sided sticky tape as properly, or another means like screws.
  • Set up the drone facet telemetry module.
  • Place your GPS on a mount and safe it someplace in the direction of the center of the body.
  • Installing GPS Mount to diy drone kit
    Putting in GPS Mount
  • Plug in all electronics/wires into the flight controller
  • Calibrate ESCs

    Find out how to Calibrate an ESC in lower than 5 Minutes (2020)

  • Connect Props. Don’t over-tighten the highest bolt. If you happen to put in the proper CW or CCW motor in the best location, the spin of the props will naturally tighten the bolt. Additionally, take note of what sort of prop you might be utilizing. The spin of the prop needs to be pushing air downward.Installing Props on Motor
  • Join drone to a GCS and calibrate sensors. This may be executed by powering the GCS facet telemetry module into a pc. The telemetry modules will probably be a stable shade after they have paired. In the event that they haven’t discovered eachother, the modules will probably be blinking. Pull up your GCS software program (I like MissionPlanner) and you should have entry to your drone through the telemetry module.
    • Give it a take a look at fly!

    Full Course on the way to make a DIY drone

    This information ought to have given you some confidence to exit and try to make your personal drone. If you’re nonetheless feeling a bit of cautious of beginning your personal drone constructing journey, positively give my diy drone building course a glance.

    Raspberry Pi Drone Course

    It covers the entire content material outlined on this web page, however in far more element. It additionally guides you alongside the drone constructing course of with a listing of pre-selected elements if you’re wanting to construct from a elements listing.

    As an added bonus the drone constructed on this course makes use of a raspberry pi, and who wouldn’t love that?

    Let me know when you’ve got any questions or feedback under.

    Comfortable flying!
